As it crosses the pocket door in all its width, it permits to solidly link the pocket with the stop jambs, thus making the assembly easier.
Unilateral
Two independent sliding pocket doors into the same pocket
OVERVIEW
FEATURES
Unilateral

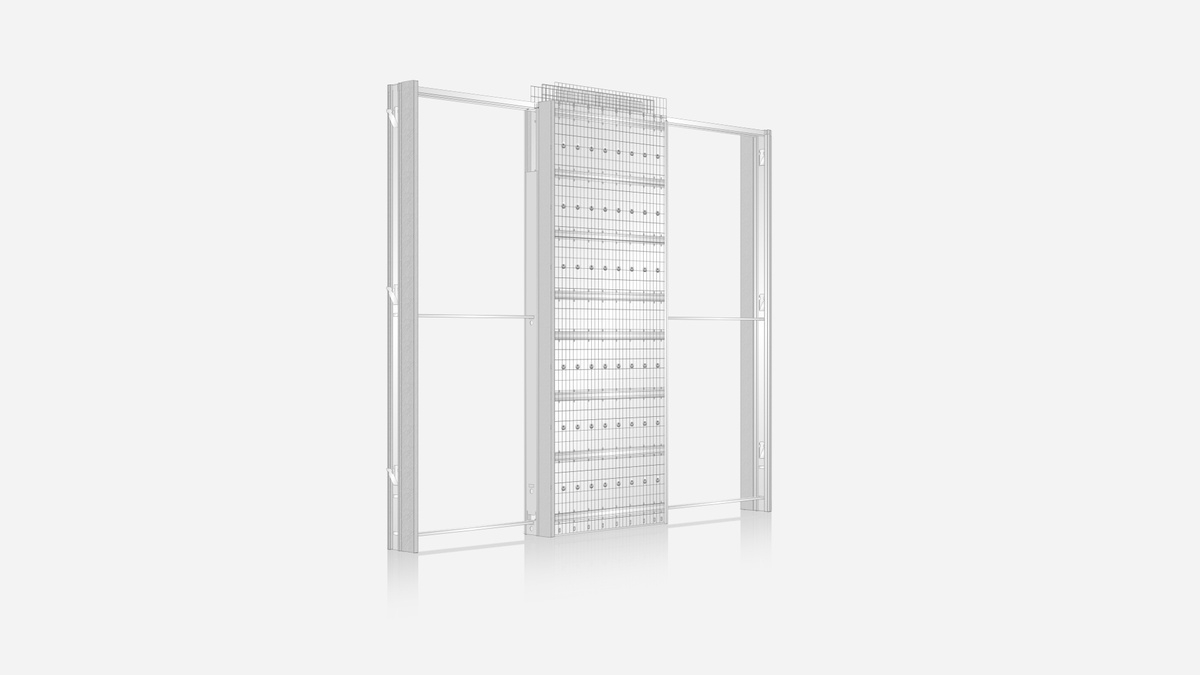

Solid wall version
Alignment bar (patented) - solid wall
Extractable track system (patented)
It is always possible to substitute worn mechanisms and to add accessories.
Protruding close plaster mesh
It joins the counterframe (50x25 mm) with the wall becoming an integral part of it, thus offering an increasing grasp of the laster. The finished wall won’t have faults.
Stopped embossed metal sheet
Thickness 0.7 mm. The bosses are reliefs that prevent any deformation in the sheet. They are a guarantee of great robustness and rigidity.
16 horizontal reinforcing bars
16 horizontal bars attached to the plasterholding mesh lends great resistance and rigidity to the counterframe, so that it can effectively counter the tension generated by brickwork and solid walls. Robustness is fundamental as the frame effectively replaces a portion of the wall. There are 32 bars with double leaf.
Weld-free connection system (patented)
For joining the overboarding mesh to the counterframe: avoids the onset of rusting and potential detachment from the mesh.
Vertical reinforced bars (solid wall version)
Made of doubled-up metal sheet, bent so that they form a single body with the solid wall. They ensure greater resistance in what would otherwise be a weak point in the counterframe where cracks in the plaster could begin to form, as it is the furthest point from the wall studs.
Self-centring door runner - solid wall
This is quickly applied directly to the counterframe with no need to drill the floor.
Under frame tear-off profile (patented)
Works on the same opening principle as cans: the base of the counterframe is removed to make the most of the space below when there is a difference in height between the counterframe installed and the finished floor.
Polystyrene joint
Located on the metal upper horizontal bar. It helps to absorb any movement in the structure.
Certified runners with ball bearings
They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg.
Wooden or steel top jamb
Made of coupled metal sheet and wood; the steel avoids any problems of deformation, while the wood facilitates the application of the jamb to the upright.
Adjustable rear door stop
Lets you change the door size without removing the door panel.
Unilateral

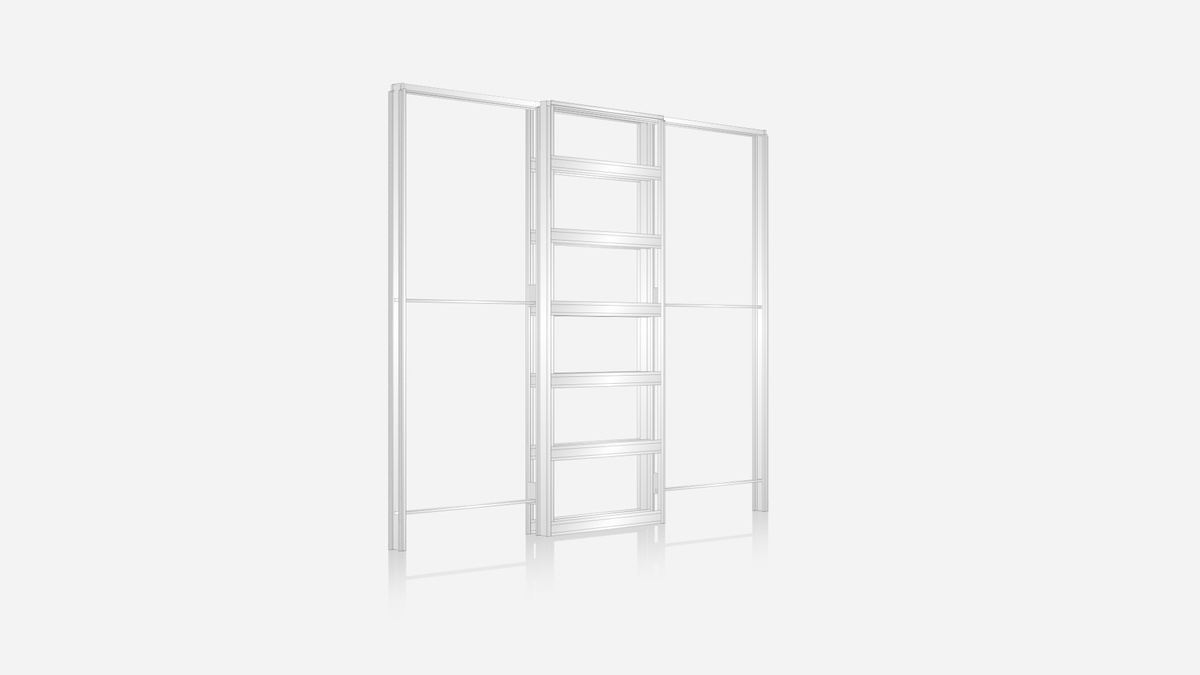

Stud wall version
Alignment bar (patented) - stud wall
As it crosses the pocket door in all its width, it permits to solidly link the pocket with the stop jambs, thus making the assembly easier.
Certified runners with ball bearings
They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg.
12 horizontal reinforcing bars
12 for the stud wall version made in 7/10 galvanized steel, with a dovetail form which grant an increased strength to lateral pressures (in order to have an un-deformable internal passage). There are 24 bars with double leaf.
Vertical reinforced bars (stud wall version)
Made of doubled-up metal sheet, bent so that they form a single body with the solid wall. They ensure greater resistance to lateral pressures.
Self-centring door runner - stud wall
This is quickly applied directly to the counterframe with no need to drill the floor.
Metal upper bar
Horizontal bar made of metal (rather than wood or PVC) increases the robustness against increased load from above.
Extractable track system (patented)
It is always possible to substitute worn mechanisms and to add accessories.
Vertical reinforced bars (stud wall version)
Made of doubled-up metal sheet, bent so that they form a single body with the solid wall. They ensure greater resistance to lateral pressures.
Adjustable rear door stop
Lets you change the door size without removing the door panel.
Accessories
