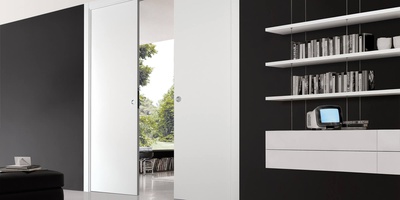

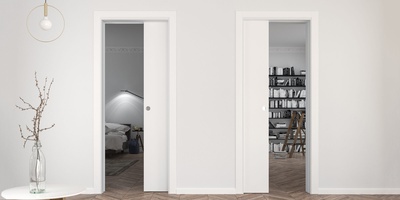

When you have a limited space, customised furnishing solutions are often required. Sliding pocket doors are the ideal solution, since they disappear when they are open, without occupying any excessive space.

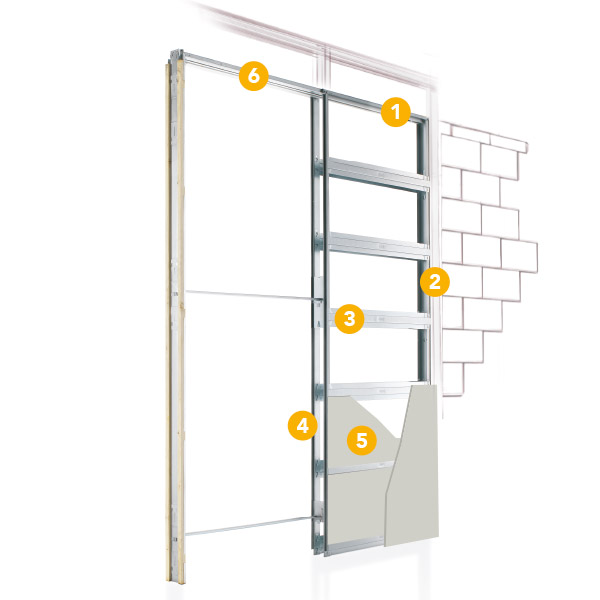

An open structure refers to a sliding pocket door system for stud walls consisting of horizontal bars (3) and vertical reinforced bars (6), closed at the top by an header (1), where the track is installed.
The result is a sturdy and reliable structure.
1. Easy and quick installation

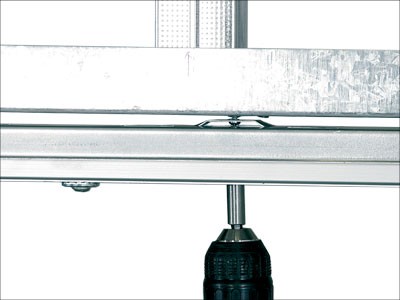

Suitable pockets above the track and along the rear bar allow to fasten the frame to the studwork directly from inside the box. Even when the space is limited, the frame can be fixed in the most proper way.
2. Practicality and versatility

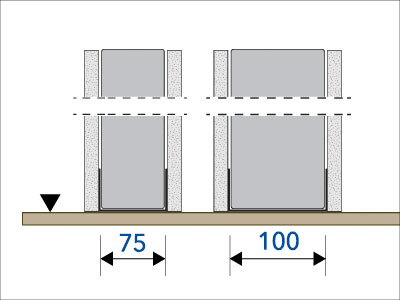

If the ECLISSE frame is required, it can be adapted to studwork measuring both 75 mm and 100 mm (KIT version) in width. This results in a greater practicality and in a quicker installation process. ▶︎ Learn more!

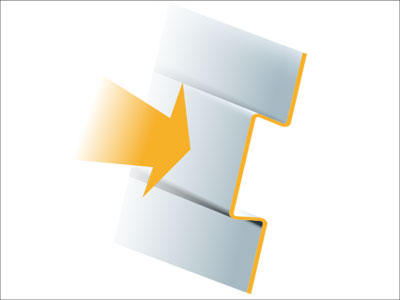

ECLISSE frames for stud wall are equipped with horizontal reinforced, dovetail shaped bars, made of 7/10 mm galvanised metal sheet for high resistance to lateral compression. They are also pre-drilled, to ease the screwing of the plasterboards.
4. Vertical reinforced bars

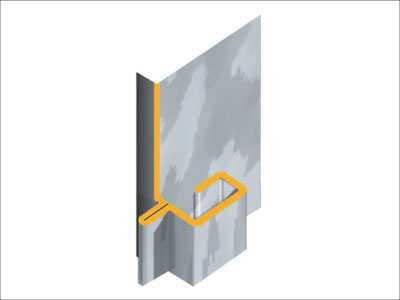

The vertical bars are made from 12/10 galvanized steel with a double reinforcement fold for high bending resistance.

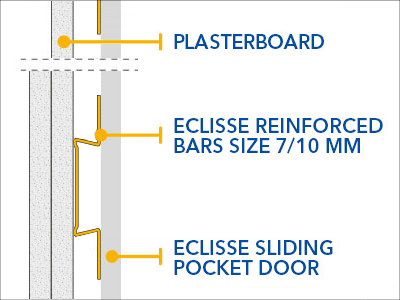

5. Great sturdiness
When laying the plasterboard, depending on the requirements, a single or double layer can be used. In both cases the wall will be solid and insulated.
6. Smooth sliding

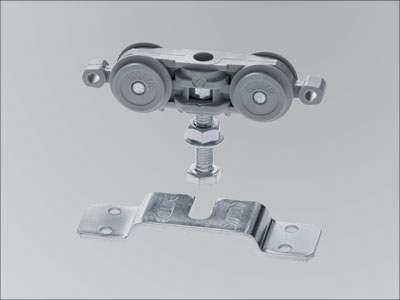

The ECLISSE runners with ball bearings (certified) last longer and ensure smooth and silent sliding movements. The standard load-bearing capacity is 100 kg per pair, 150 kg on request.
Our laboratory tests have shown that the ECLISSE sliding pocket door systems with open structure are more resistant to lateral bending compared to most products currently available on the market. This is essential to ensure that the correct sliding of the door.

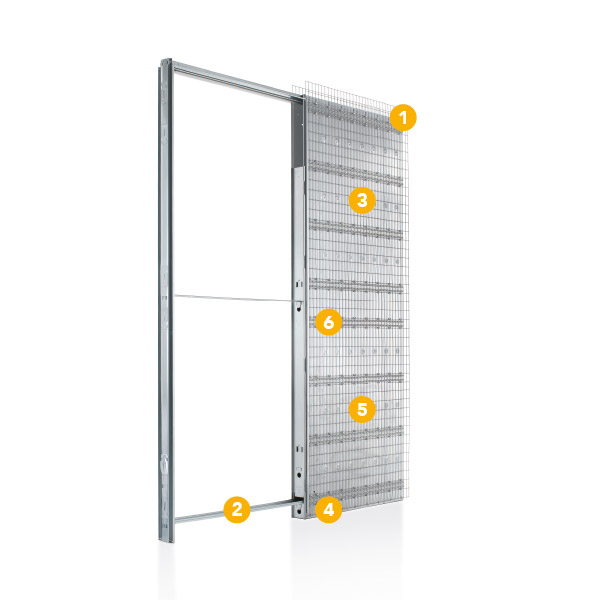

Sliding pocket door systems designed for solid wall guarantee the same results as the sliding pocket door systems for stud wall in terms of installation practicality and functionality.
The problem to avoid, when choosing a sliding pocket door system for solid wall, is the appearance of unpleasant cracks on the finished wall.
ECLISSE has solved cracking problems by adopting special design solutions, in order to guarantee a product that always meets expectations.

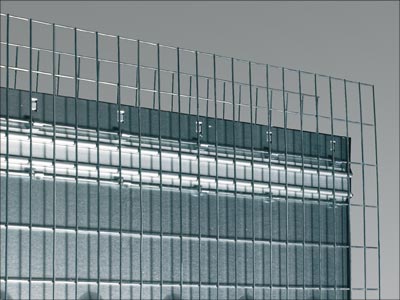

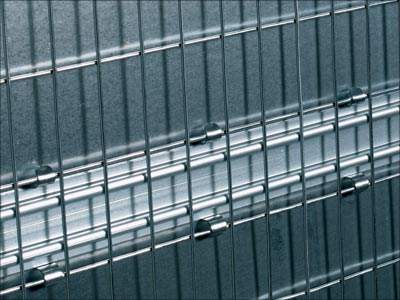

1. Protruding knurled mesh

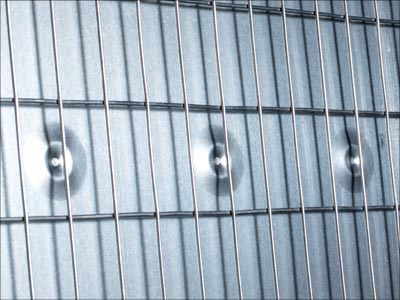

It is made with a thick and knurled mesh (50x25 mm) to improve the plaster adhesion to the metal sheet. The mesh protrudes from the frame by a few centimetres simplifying the installation. The patented weld-free attaching system prevents the arising of rust and possible mesh detachments.
2. Micro-ribbed filler plate
Embossing is a punching process that creates relief elements on a smooth metal sheet panel. These 7/10 mm-thick protrusions increase the rigidity and the sturdiness of the frame.
3. Horizontal reinforced bars
16 bars hooked to the plaster mesh make the sliding pocked door system extremely resistant and rigid. These two properties allow to effectively counter the tension generated by the growth of the plaster.
