It joins the counterframe (50x25 mm) with the wall becoming an integral part of it, thus offering an increasing grasp of the laster. The finished wall won’t have faults.
A counterframe as strong as a wall
The smart solution that uses the entire wall

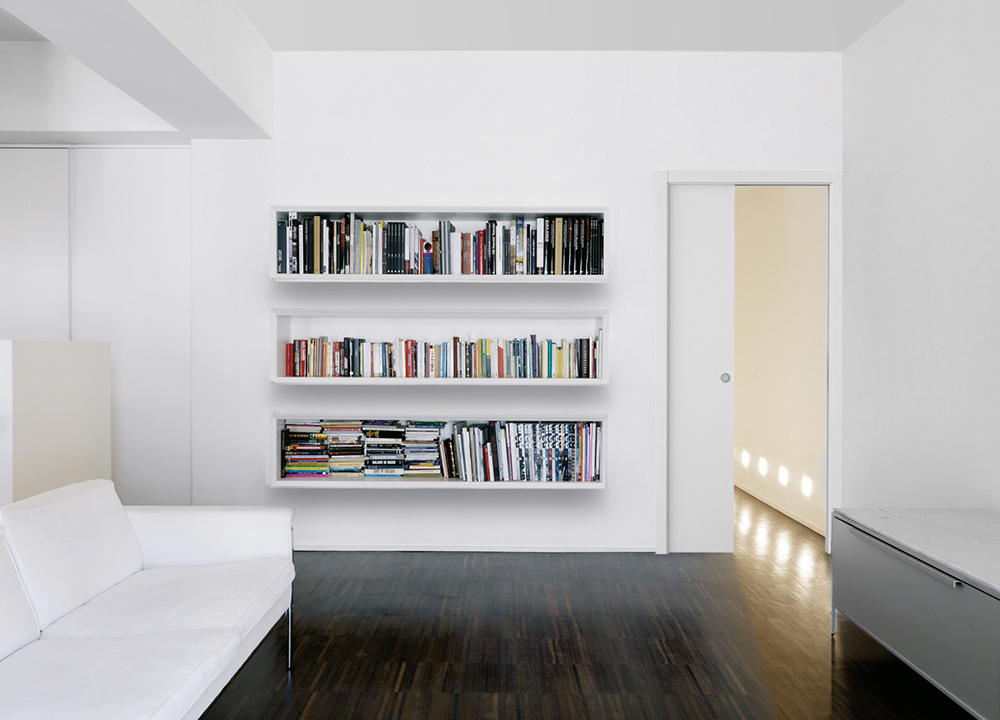

ECLISSE Ewoluto® Single is the pocket door system that allows to hang loads, such as wall units and shelves, directly on the wall section where it is hosted.
The wall that hosts the pocket becomes a standard wall.
The counterframe is a fully-fledged wall
The patented ECLISSE technology solves the problem related to traditional sliding doors. The special structure transforms the counterframe into a real wall, expanding the possibilities for interior decor and furbishing.
Ewoluto® and disability
ECLISSE Ewoluto® Single does not interfere with the moving spaces and does not impede the passage of a wheelchair, which can slide freely and without any obstacles.

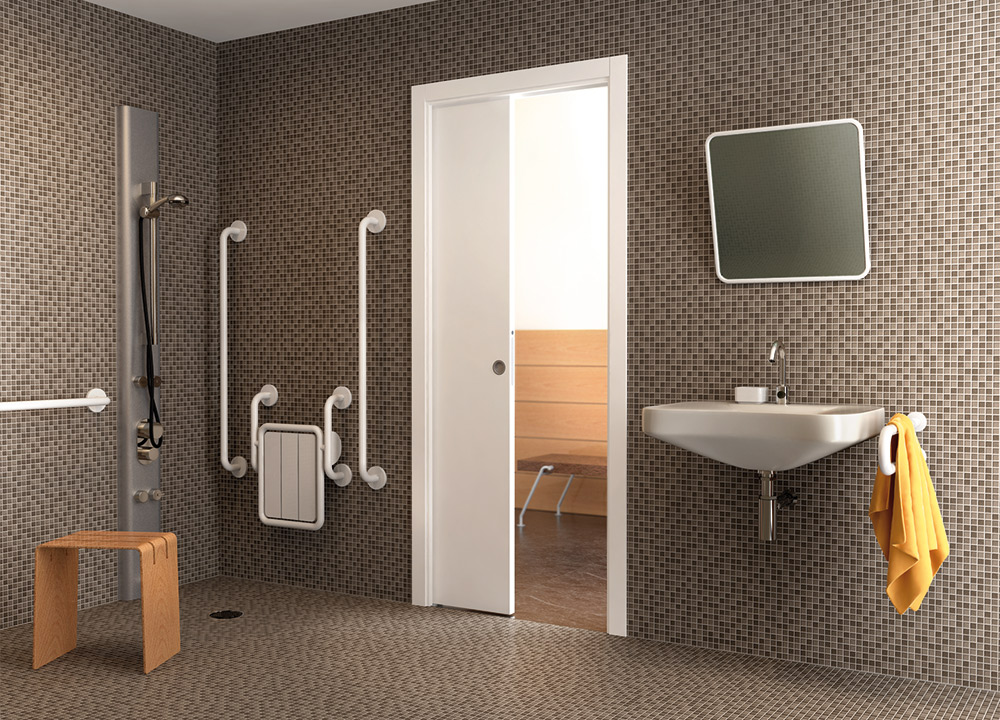

It is also used to fix the security and support handles in the bathrooms.
What you should know
ECLISSE Ewoluto® Single is supplied with passage size ranging from 600 to 1200 mm in width and from 1000 to 2400 mm in height, only in the solid wall version.
Using traditional mechanical wall anchors a capacity of 30 kg (600 mm from the wall) to 180 kg (against the wall) is guaranteed. A chemical wall anchorage has a better capacity: 60 kg (distance 600 mm from the wall) to 360 kg (against the wall). It is recalled that the maximum capacity of a handle bar, fixed with a chemical anchor (four-points anchorage) is 100 kg at a distance of 600 mm from the wall.

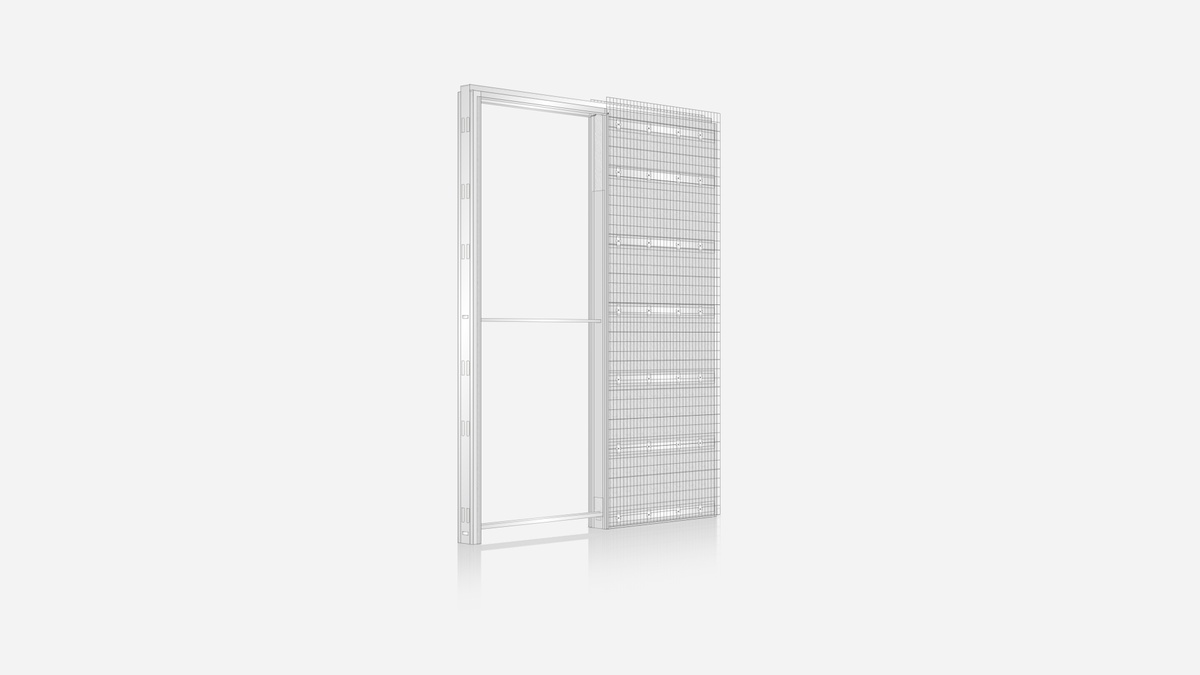

ECLISSE Ewoluto® Single - SOLID WALL version
Solid wall version
It is always possible to substitute worn mechanisms and to add accessories.
Made of doubled-up metal sheet, bent so that they form a single body with the solid wall. They ensure greater resistance in what would otherwise be a weak point in the counterframe where cracks in the plaster could begin to form, as it is the furthest point from the wall studs.
16 horizontal bars attached to the plasterholding mesh lends great resistance and rigidity to the counterframe, so that it can effectively counter the tension generated by brickwork and solid walls. Robustness is fundamental as the frame effectively replaces a portion of the wall. There are 32 bars with double leaf.
Thickness 0.7 mm. The bosses are reliefs that prevent any deformation in the sheet. They are a guarantee of great robustness and rigidity.
