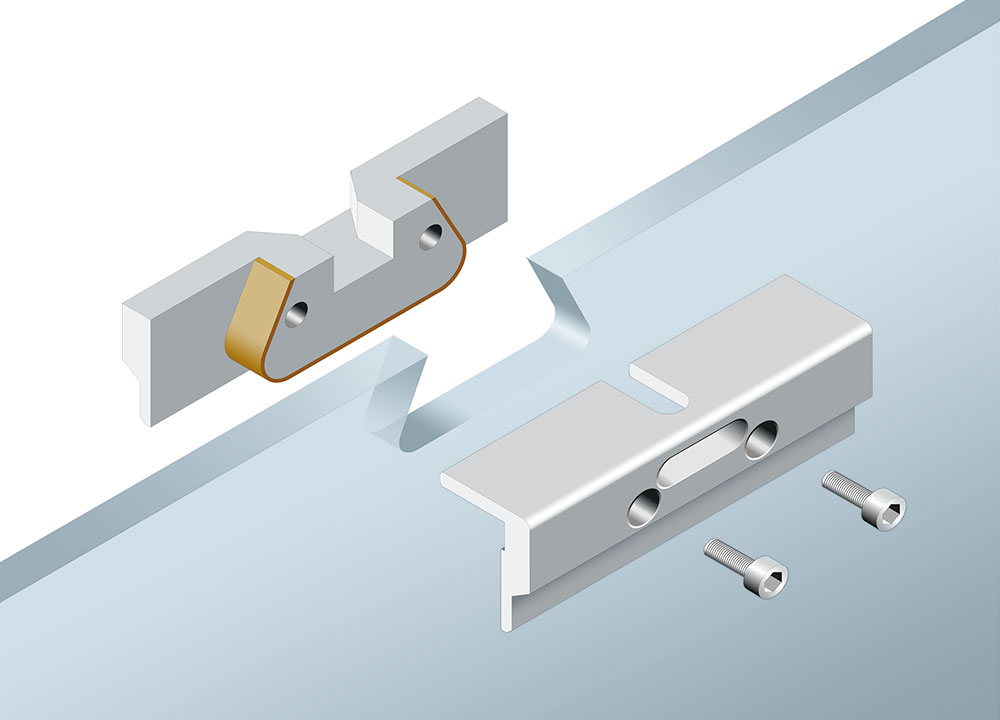

Brackets for sliding pocket glass doors
Brackets are a fastening system for glass doors that requires two “dovetail” milling incisions on top of the door panel.
- Max door panel weight: 100 kg
- Dimensions: W 100 x H 35 x Thk 26 mm
- Supported glass thickness: 10 mm
Standard with ECLISSE glass doors.
![Brackets for sliding pocket glass doors](/media/filer_public/d4/1c/d41c11c1-d057-4b35-9551-16954ed36338/porte_in_vetro_staffe_1000x720_blu.jpg)
![Clamps for sliding pocket glass doors](/media/filer_public/3f/89/3f899643-ae64-433a-99db-d3d21d898f11/porte_in_vetro_pinza_blu.jpg)

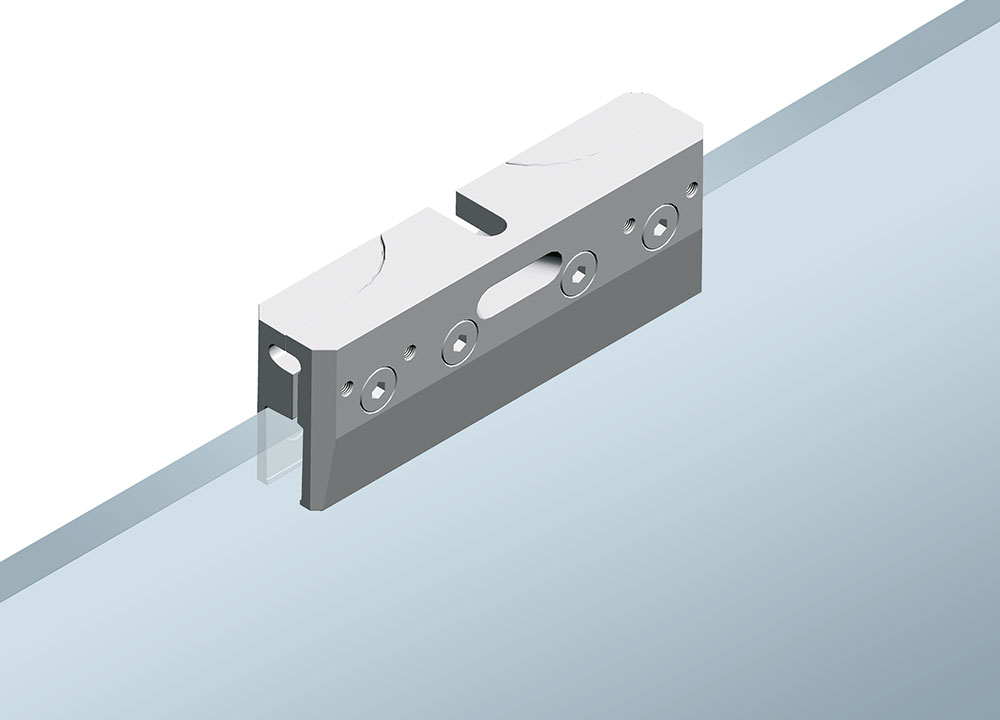

Clamps for sliding pocket glass doors
Clamps are a different fastening system for glass doors. They do not require special processing for their installation as they are fastened directly on top of the glass panel, ensuring its locking.
- Max door panel weight: 80 kg
- Dimensions: W 145 x H 45 x Thk 27 mm
- Supported glass thickness: 8-10 mm
Brackets and Clamps are compatible with
