Located on the metal upper horizontal bar. It helps to absorb any movement in the structure.
Novanta

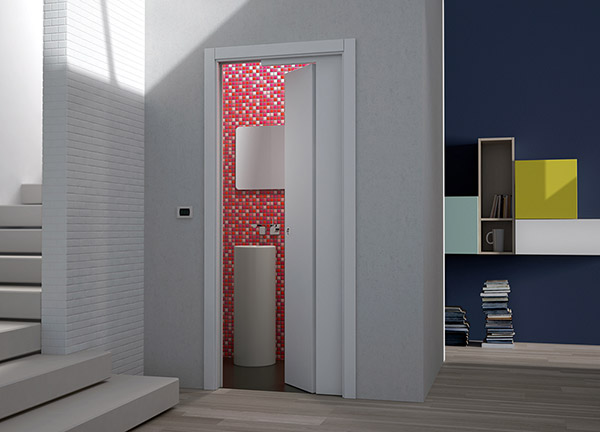

Half pocket half hinged system
OVERVIEW
FEATURES
Novanta

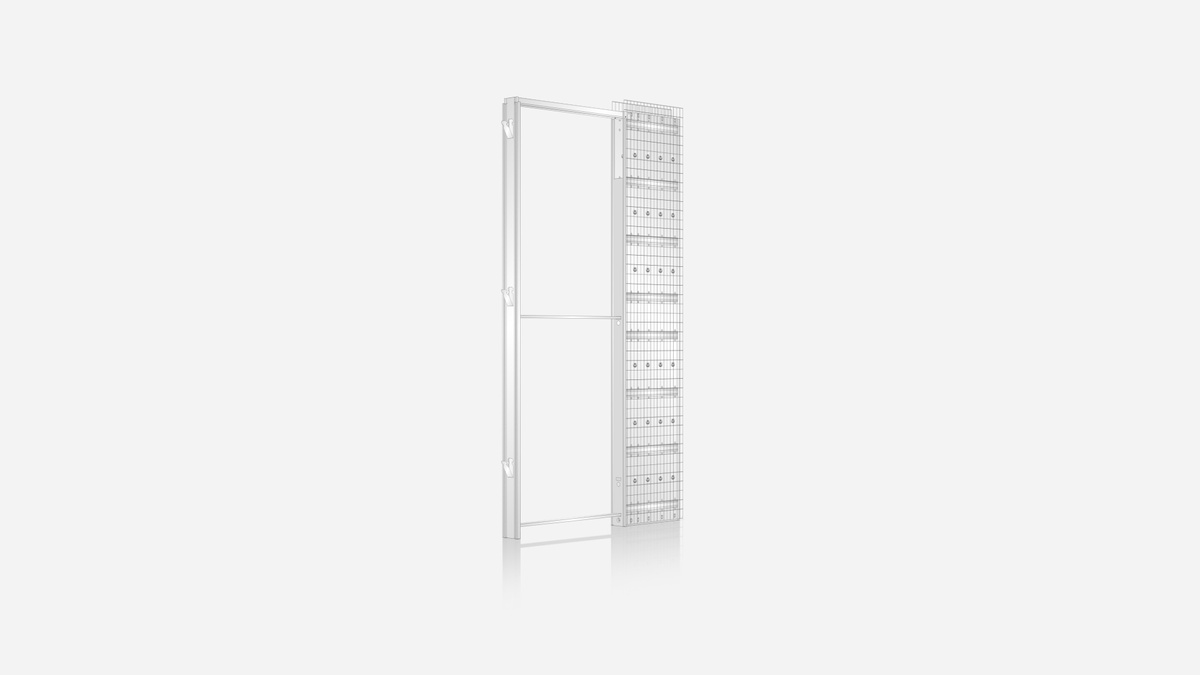

Solid wall version
Polystyrene joint
Alignment bar (patented) - solid wall
As it crosses the pocket door in all its width, it permits to solidly link the pocket with the stop jambs, thus making the assembly easier.
Extractable track system (patented)
It is always possible to substitute worn mechanisms and to add accessories.
Wooden or steel top jamb
Made of coupled metal sheet and wood; the steel avoids any problems of deformation, while the wood facilitates the application of the jamb to the upright.
Certified runners with ball bearings
They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg.
Self-centring door runner - solid wall
This is quickly applied directly to the counterframe with no need to drill the floor.
Under frame tear-off profile (patented)
Works on the same opening principle as cans: the base of the counterframe is removed to make the most of the space below when there is a difference in height between the counterframe installed and the finished floor.
Vertical reinforced bars (solid wall version)
Made of doubled-up metal sheet, bent so that they form a single body with the solid wall. They ensure greater resistance in what would otherwise be a weak point in the counterframe where cracks in the plaster could begin to form, as it is the furthest point from the wall studs.
Weld-free connection system (patented)
For joining the overboarding mesh to the counterframe: avoids the onset of rusting and potential detachment from the mesh.
16 horizontal reinforcing bars
16 horizontal bars attached to the plasterholding mesh lends great resistance and rigidity to the counterframe, so that it can effectively counter the tension generated by brickwork and solid walls. Robustness is fundamental as the frame effectively replaces a portion of the wall. There are 32 bars with double leaf.
Stopped embossed metal sheet
Thickness 0.7 mm. The bosses are reliefs that prevent any deformation in the sheet. They are a guarantee of great robustness and rigidity.
Protruding close plaster mesh
It joins the counterframe (50x25 mm) with the wall becoming an integral part of it, thus offering an increasing grasp of the laster. The finished wall won’t have faults.
Novanta

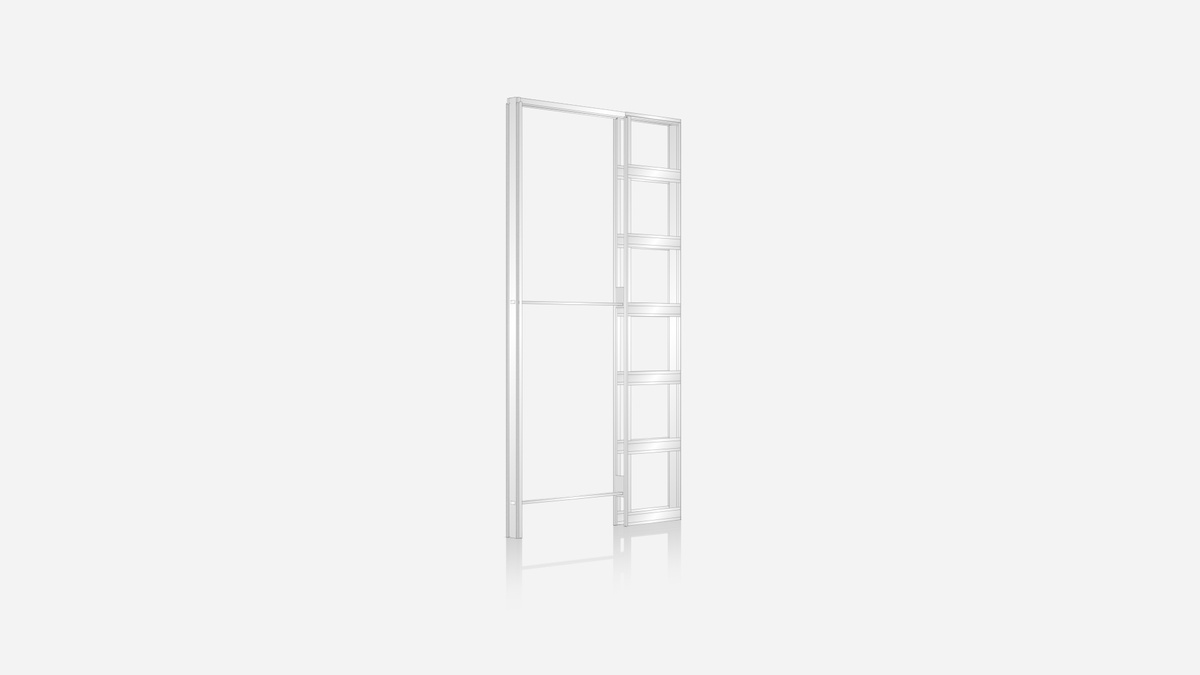

Stud wall version
Alignment bar (patented) - stud wall
As it crosses the pocket door in all its width, it permits to solidly link the pocket with the stop jambs, thus making the assembly easier.
Certified runners with ball bearings
They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg.
Adjustable rear door stop
Lets you change the door size without removing the door panel.
Wooden or steel top jamb
Made of coupled metal sheet and wood; the steel avoids any problems of deformation, while the wood facilitates the application of the jamb to the upright.
Metal upper bar
Horizontal bar made of metal (rather than wood or PVC) increases the robustness against increased load from above.
Self-centring door runner - stud wall
This is quickly applied directly to the counterframe with no need to drill the floor.
Vertical reinforced bars (stud wall version)
Made of doubled-up metal sheet, bent so that they form a single body with the solid wall. They ensure greater resistance to lateral pressures.
12 horizontal reinforcing bars
12 for the stud wall version made in 7/10 galvanized steel, with a dovetail form which grant an increased strength to lateral pressures (in order to have an un-deformable internal passage). There are 24 bars with double leaf.
Extractable track system (patented)
It is always possible to substitute worn mechanisms and to add accessories.
