    OVERVIEW

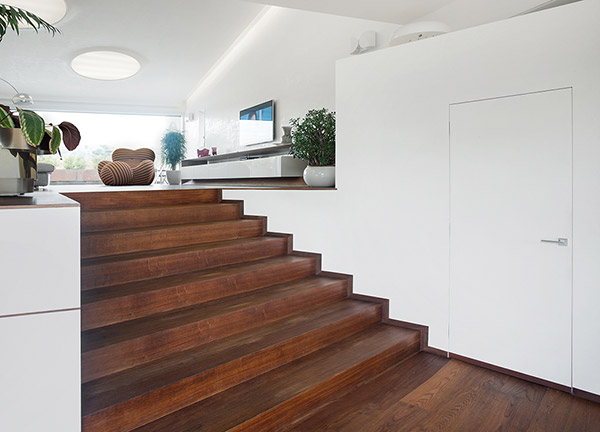

    ECLISSE flush-to-the-wall hinged door

    Flush doors for extreme customization

    Total freedom to your interior design

    ECLISSE Syntesis® Line Battente is the solution that allows to install a hinged door with no jambs and architraves, completely flush with the wall.
    With or without header, it grants a full integration between door panel, wall and ceiling.

    To hide or to be protagonist?

    According to your taste, the door can be painted in the same color as the wall and be completely hidden from the view, or it can be lacquered or decorated with finishing or prints that put it in clear prominence making it a real design elements.

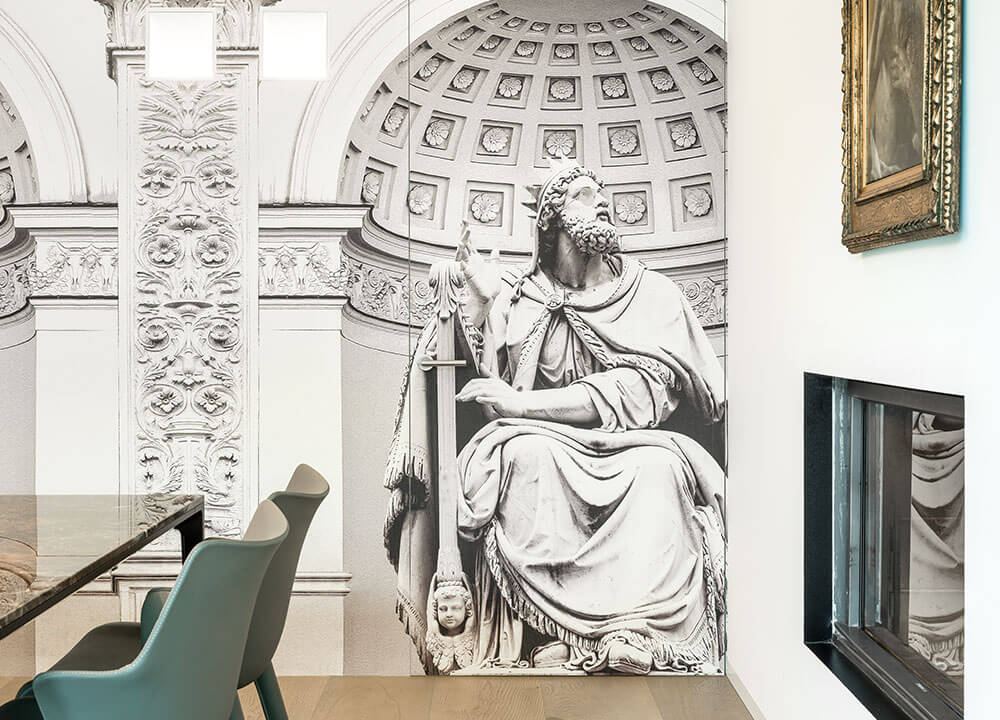

    ECLISSE flush-to-the-wall hinged door with wallpaper

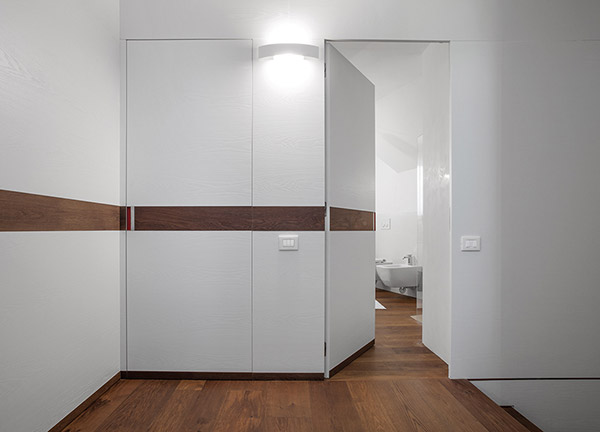

    ECLISSE flush-to-the-wall hinged door

    Details that make the difference

    The structural characteristics of the frame are designed to guarantee a perfect flush-to-wall aesthetic and a functional performance.

    Both elements (door panel and frame) are coated with a layer of primer to facilitate paint adhesion.

    The magnetic lock, also flush with the wall, ensures extraordinarily quiet closing. Thanks to the adjustable tensioning rod, the door is constantly kept under tension and perfectly level with the wall.

    Dimensions and types of openings

    ECLISSE Syntesis® Line Battente is a universal frame that places no limits on the opening directions: available as push door, right and left side, and as pull door, right and left side.

    Non-standard sizes are not a problem, you can go up to 2700 mm and have a door that is flush with the wall and with the ceiling. A special feature of this product line is that the doors can be fitted without header, to achieve a total integration between the door, the wall and the ceiling.

    Also available in the double leaf version.

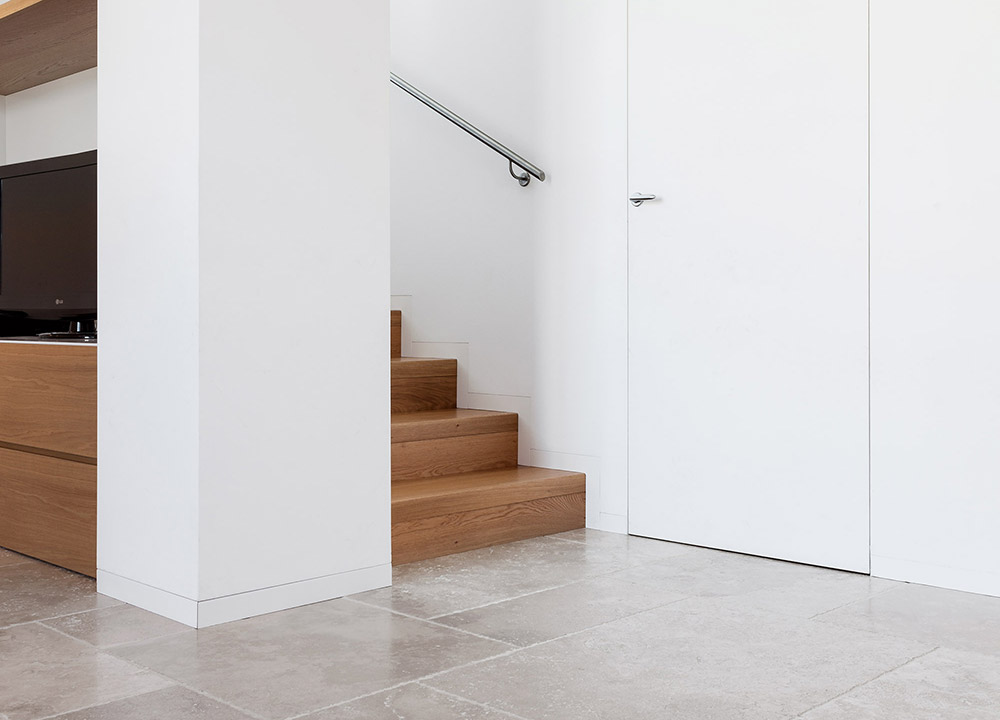

    ECLISSE flush-to-the-wall hinged door and baseboard
                 
    ECLISSE flush-to-the-wall hinged door with inclined header
                 
    ECLISSE flush-to-the-wall hinged door with inclined header
        

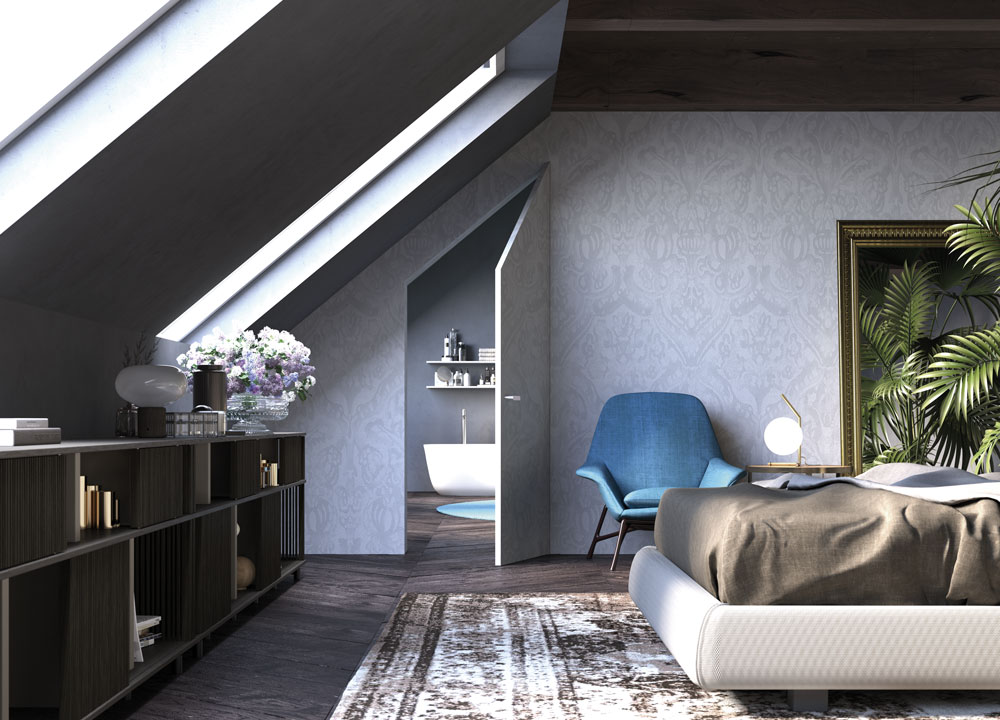

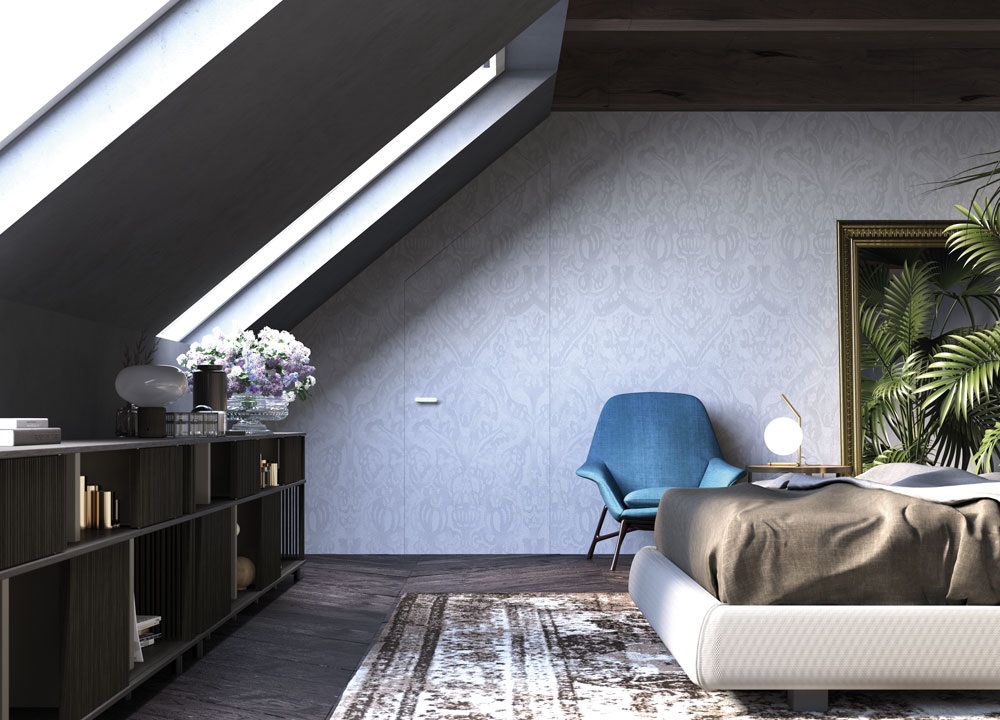

    Try a different angle

    ECLISSE Syntesis® Line Battente can also be supplied with an inclined upper edge, the ideal solution for sloping ceilings, attics or under-stair closets. The frame can be realized with different angles, both with or without header.

    ECLISSE Syntesis® Line Battente with angled door is available only for pull version for solid and stud walls.

    Controlled opening

    The electric strike for hinged door is an access control device that allows to open doors unlocking the lock via an electric impulse. The activation mechanism (magnetic card, pushbutton, etc.) is not included.

    Note: cannot be used with frames already installed.

    Not compatible with ECLISSE Syntesis® Line Battente Double.

    ▶︎  ELECTRIC STRIKE

    Electric strike for wooden hinged doors

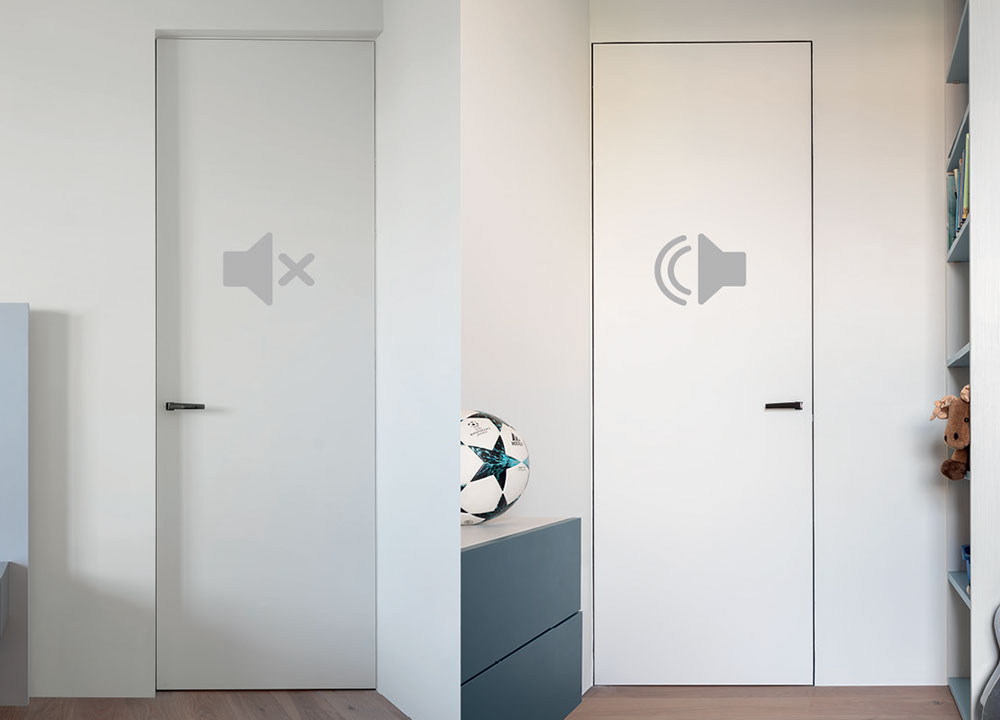

    Flush door with acoustic performance

    Silence has more space

    The flush hinged door with acoustic performance

    ECLISSE Syntesis® Line Battente, is now also available complete with acoustic kit, a solution with certified noise reduction up to 33 dB.

    What does the acoustic kit include?

    Formal coherence and rigour with a flush-to-wall skirting

    Flush-to-wall doors installed on ECLISSE Syntesis® hinged and sliding frames can be combined with a flush-to-wall baseboard, thanks to a special aluminium profile that allows the skirting board to be fitted flush with the wall.
    The result is minimalism, linearity and the absence of protrusions. Even along the stairs.

    ▶︎  ECLISSE Syntesis® Baseboard

    ECLISSE flush-to-the-wall baseboard
    ECLISSE Delta - inclined baseboard with patented tapered terminals

    Formal coherence and rigour still, but with a twist

    The illusion of a totally flush wall with a play of light and volumes that only appear when changing your point of view. You can have this combining ECLISSE Syntesis® doors with ECLISSE Delta, the innovative inclined baseboard with tapered terminal elements (exclusive patent).
    The pure linearity of surfaces perfectly combined with a play of volumes.

    ▶︎  ECLISSE Delta

    Why ECLISSE

    Different systems for your business and for your needs.

    Learn more



    Size Guide

    A wide range of systems. Find your best pocket doors.

    Learn more



    Purchase ECLISSE

    Choose the best way to buy our products close to you.

    Find dealer

    FEATURES

    What you should know

    ECLISSE Syntesis® Line Battente is designed to simplify life for the installer while getting the best possible result. First, the frame fits both to solid and stud walls. It comes with a plastic cover that protect it from dirt or scratches at construction site and is provided with spacer panels to ensure perfect squaring of the frame.

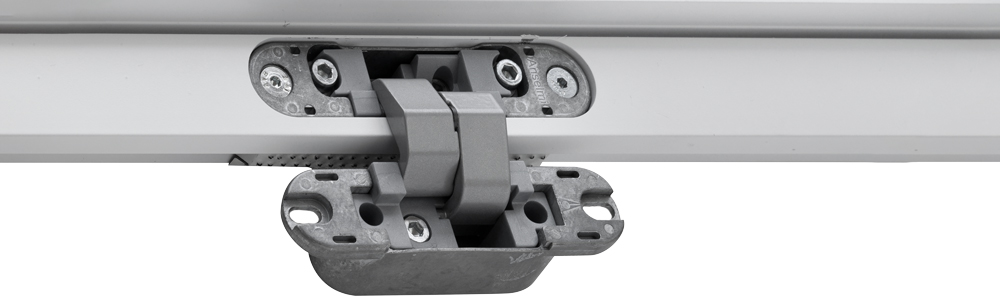

    ECLISSE Syntesis Line Battente concealed hinge

    The acoustic kit for flush swing door

    What the acoustic kit includes.

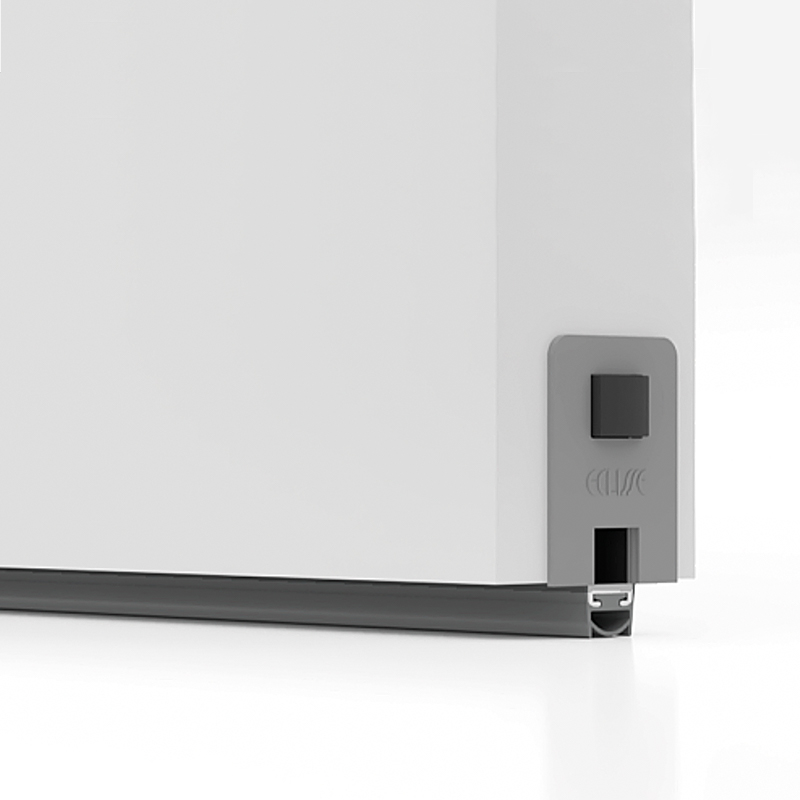

    Soundproofing weatherstrip for flush door with acoustic performance

    BOTTOM WEATHERSTRIP

    It is inserted into the bottom milling of the door panel and is adjustable in downward and tilt, for even pressure over the entire length.
    The weatherstrip raises and lowers with every opening and closing of the hinged door.
    The rounded, flexible shape envelops the gaps with precision.

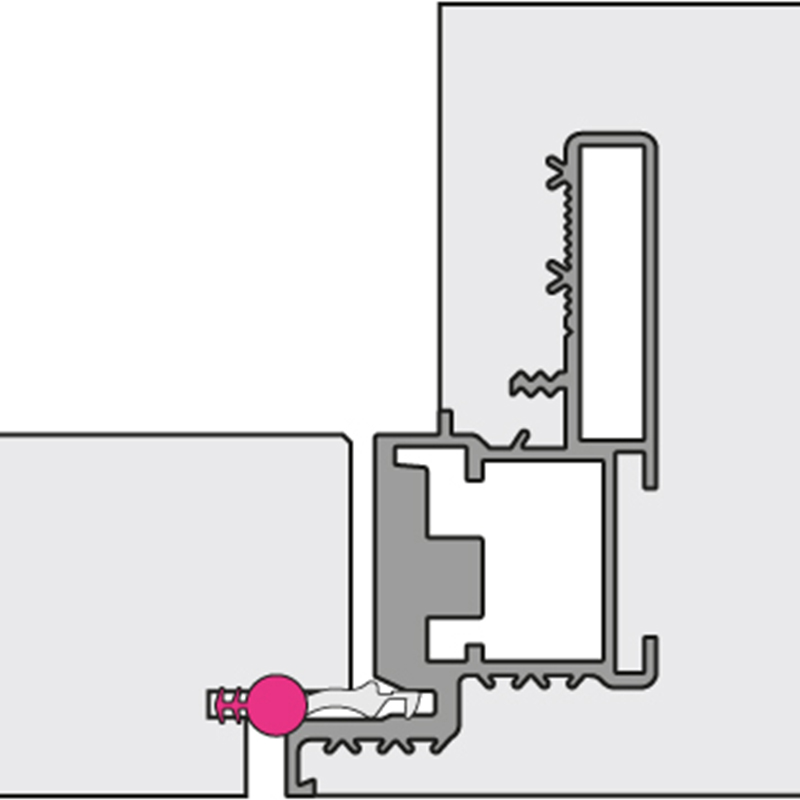

    Soundproofing gaskets for flush door with acoustic performance

    ACOUSTIC GASKETS

    Applied to the door, they seal it at the top and vertically. Linked to the bottom weatherstrip, the gaskets seal the entire door perimeter.

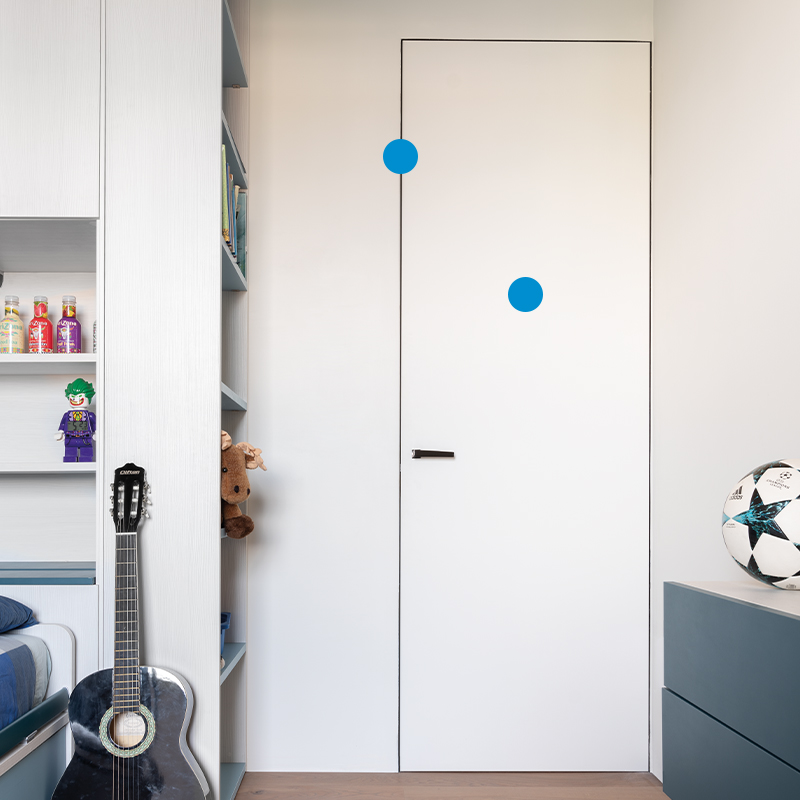

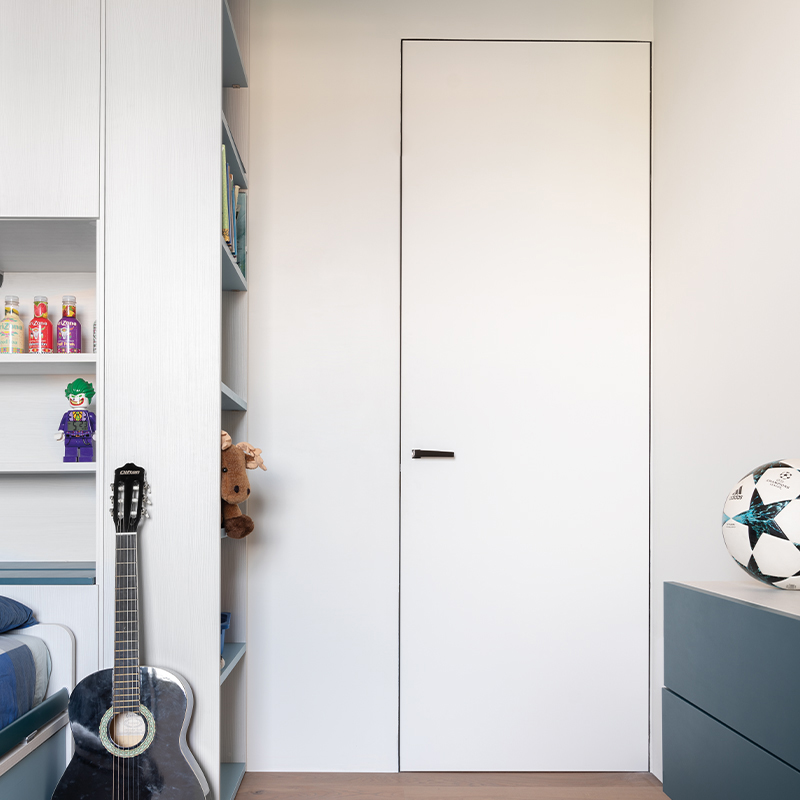

    Soundproofing door panel for flush door with acoustic performance

    DOOR PANEL

    The acoustic door panel is 45 mm thick and is supplied as standard with the necessary machining for the application of accessories. It is available in lacquered RAL colours or primer-coated, ready to be painted.
    To guarantee acoustic performance, the locks that can be applied are the handle only, the handle with thumb-turn or the handle with cylinder lock.

    DEDICATED HARDWARE

    The system includes special hardware with an additional gasket to support acoustic performance.

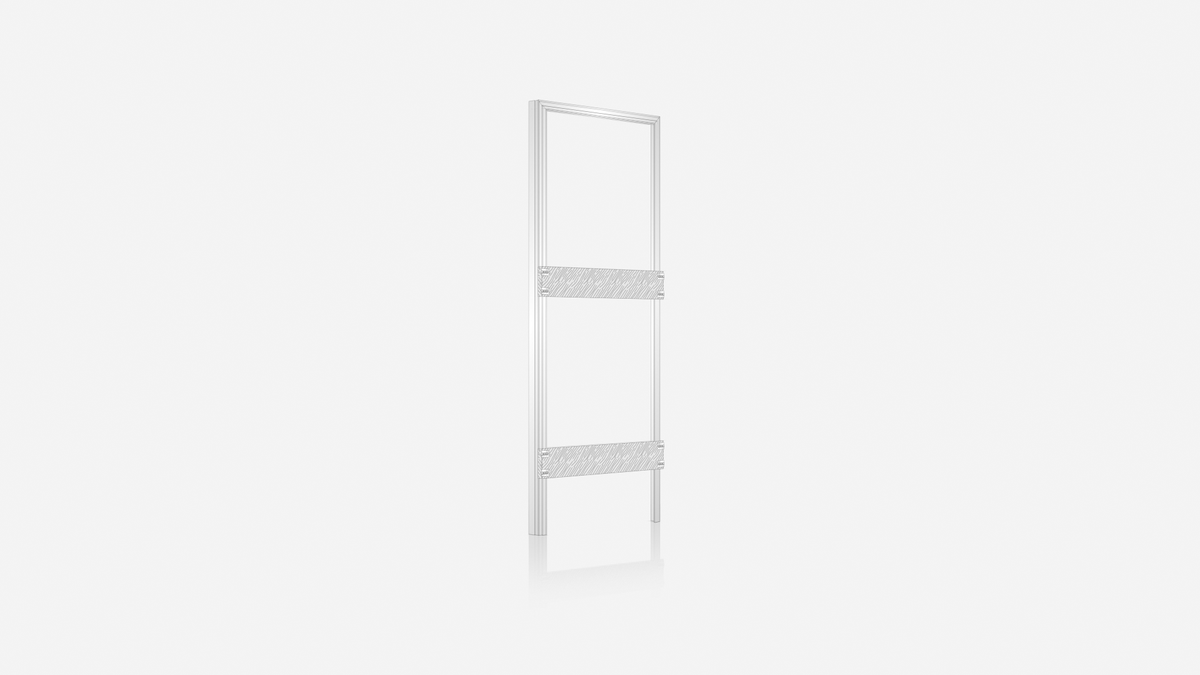

    ECLISSE Syntesis® Line Battente - PUSH version

    Syntesis Line Battente

    Push version

    Spacer panels in OSB 3

    25 mm thick and pre-assembled to guarantee a perfect squaring of the frame.

    Long lasting and paintable

    The aluminium frame is firstly subjected to an anodization treatment against oxidation and then it is primer-coated to facilitate the paint cohesion.

    Very strong frame

    The frame profile weighs about 2 kg/m.

    No cracks on the frame

    The frame profile is specially designed to avoid cracks.

    Quote 100 mm - Syntesis Battente

    It helps the installer finding the “0” quote.

    Trademark

    The frame is recognisable thanks to the trademark.

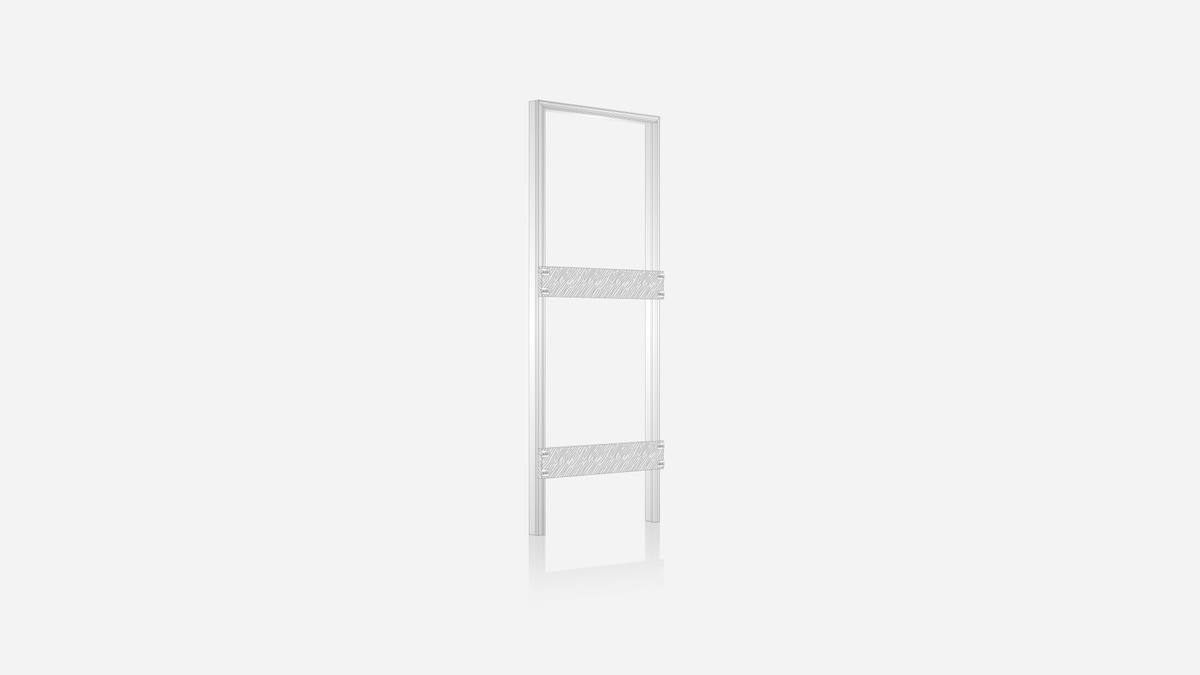

    ECLISSE Syntesis® Line Battente - PULL version

    Syntesis Line Battente

    Pull version

    Long lasting and paintable

    The aluminium frame is firstly subjected to an anodization treatment against oxidation and then it is primer-coated to facilitate the paint cohesion.

    No cracks on the frame

    The frame profile is specially designed to avoid cracks.

    Very strong frame

    The frame profile weighs about 2 kg/m.

    Trademark

    The frame is recognisable thanks to the trademark.

    Quote 100 mm - Syntesis Battente

    It helps the installer finding the “0” quote.

    Spacer panels in OSB 3

    25 mm thick and pre-assembled to guarantee a perfect squaring of the frame.

    Adjustable clamps

    The clamps are adjustable for height and prepared to be easily fixed to solid wall.
